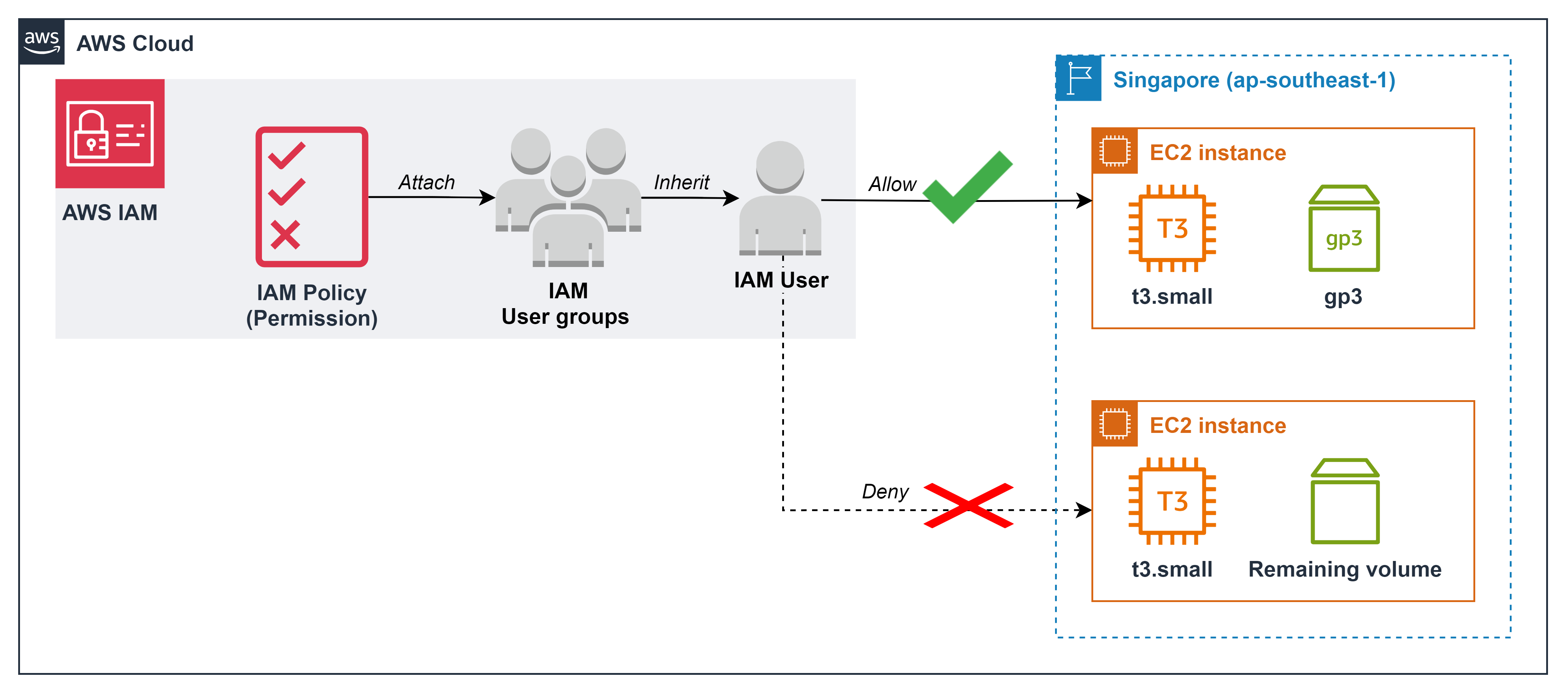

Limited use of EBS volume storage type

Limit usage of EBS volume storage type

create vpc for linux instance

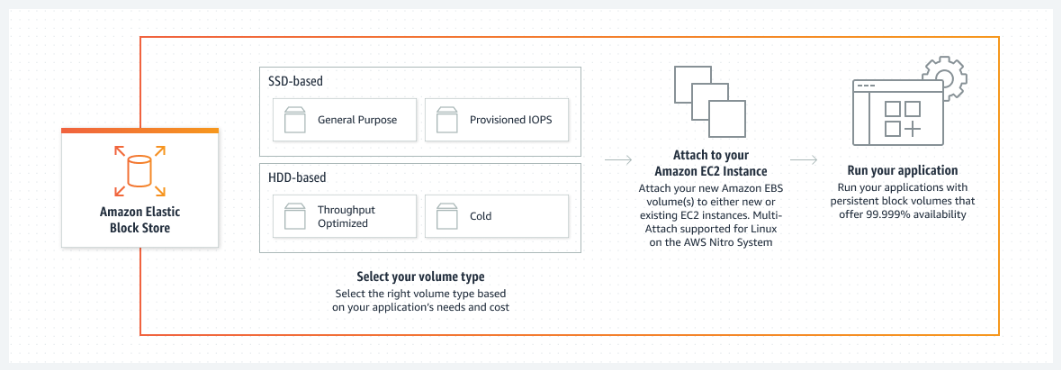

  • Amazon Elastic Block Store (Amazon EBS) provides block level storage volumes for EC2 instances, making it possible to run your applications with persistent block volumes that offer 99.999% availability.

  • AWS provides SSDs and HDDs for volumes: General Purpose SSD volumes, Provisioned IOPS SSD volumes, Throughput Optimized HDD volumes, Cold HDD volumes. Learn more through the documentation: Amazon EBS volume types

create vpc for linux instance

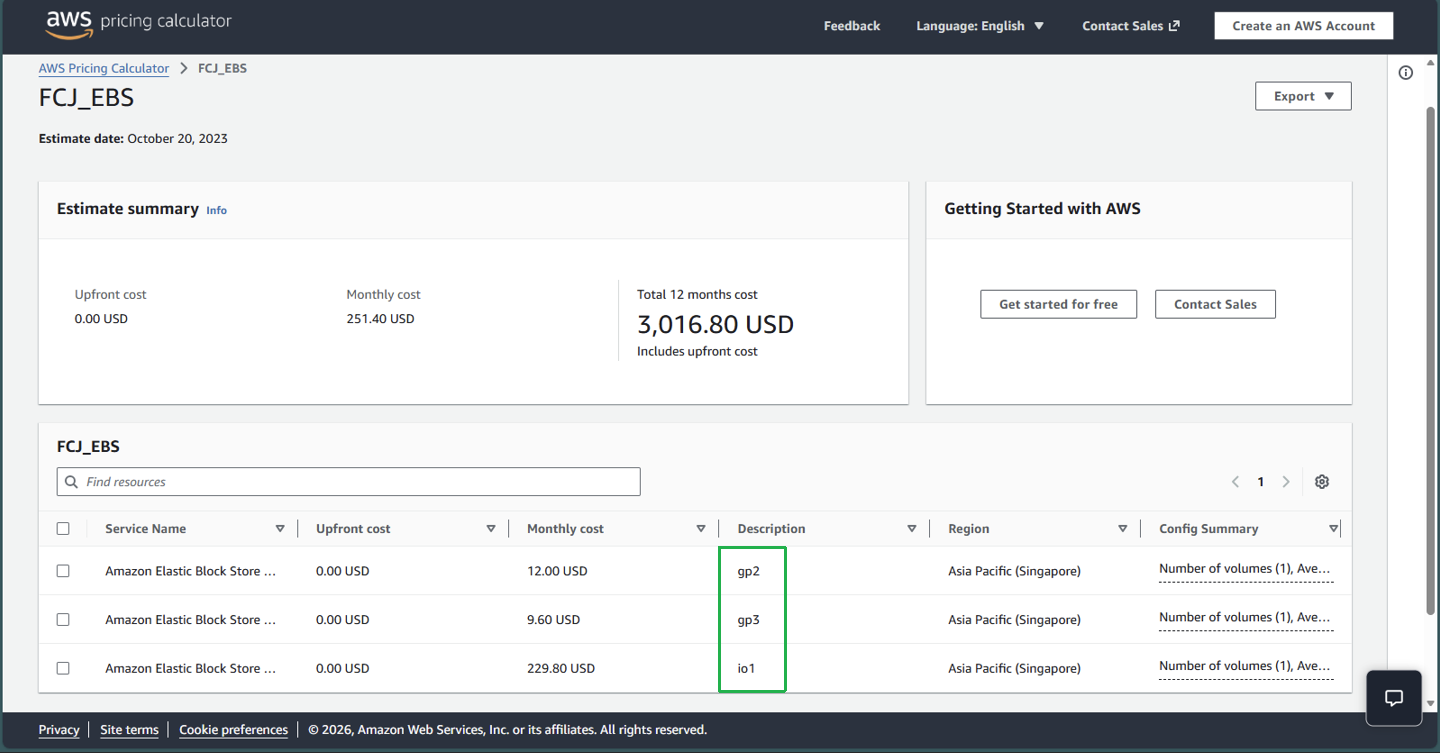

  • Suppose the dev team, with the need for versatile use, General Purpose SSD volumes are frequently used with two types: gp3 and gp2. In which the new gp3 baseline IOPS is 3000 with a cost of only 9.6 USD/100GB, 2.4 USD/100GB cheaper than gp2 whose baseline IOPS is only 300. AWS Pricing Calculator

create vpc for linux instance

  1. Create an IAM Policy that only allows users to initialize EC2 with EBS volume: gp3

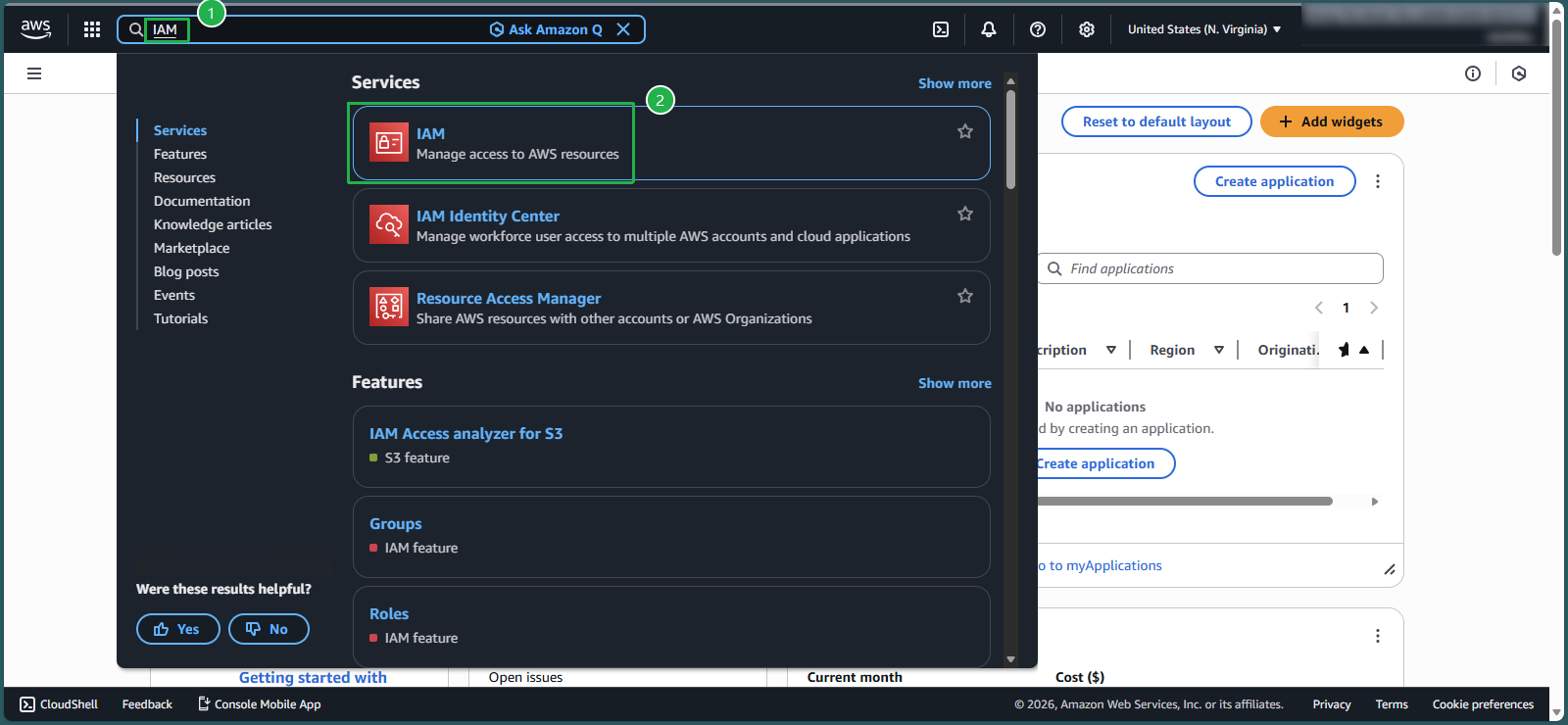

    • In the AWS console, in the search box, enter IAM
    • Select IAM service

    create vpc for linux instance

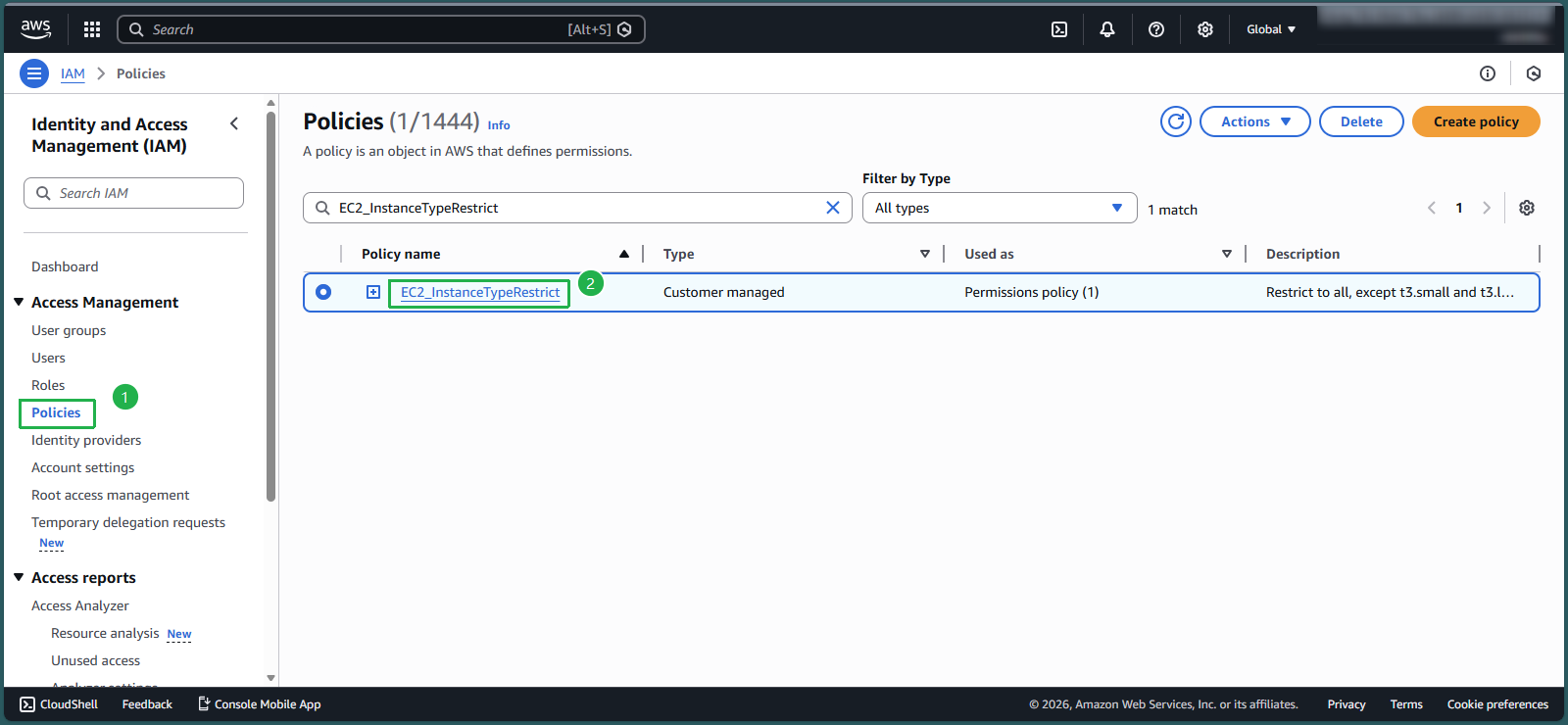

    • On the left side of the screen, select Policies
    • In the search box 🔍, enter EC2_InstanceTypeRestrict, Select EC2_InstanceTypeRestrict

    create vpc for linux instance

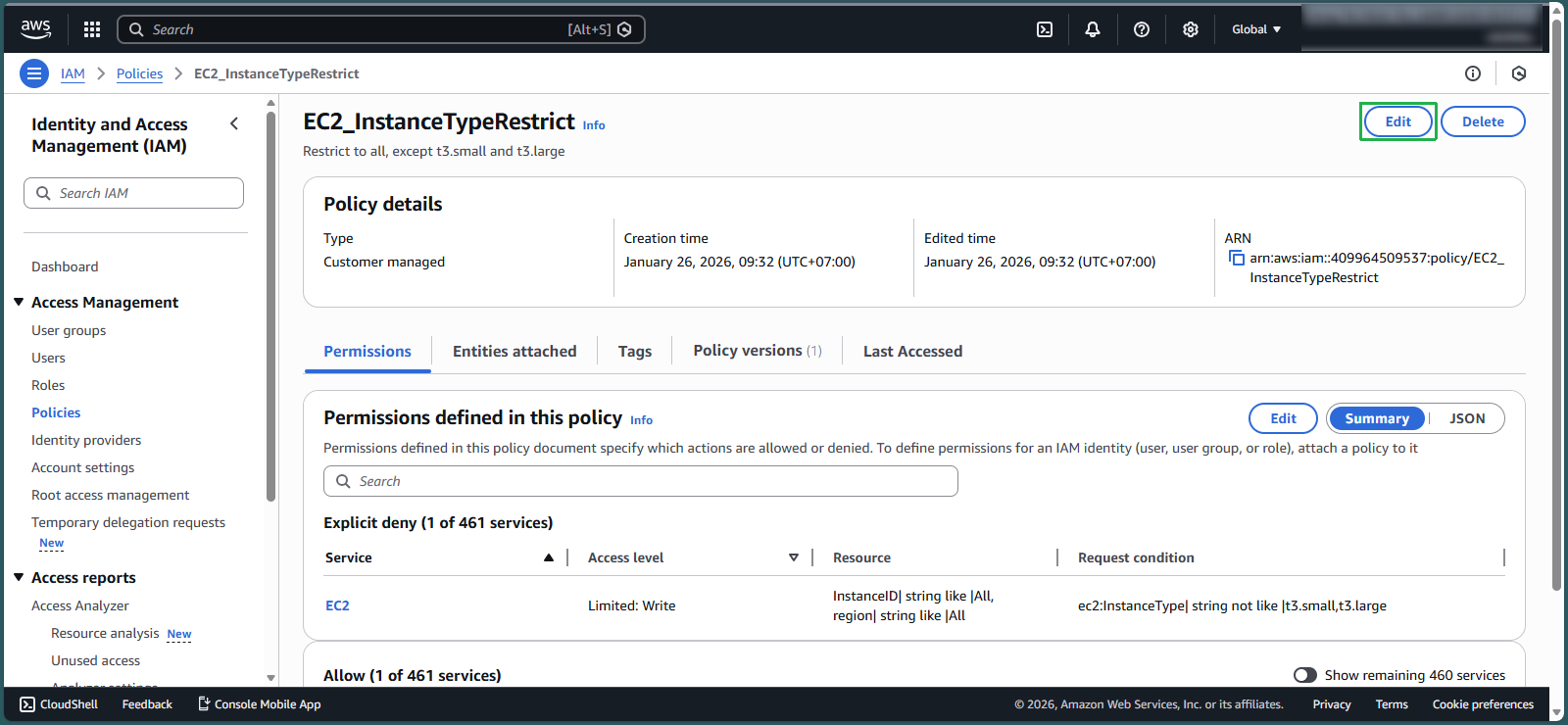

    • Select Edit

    create vpc for linux instance

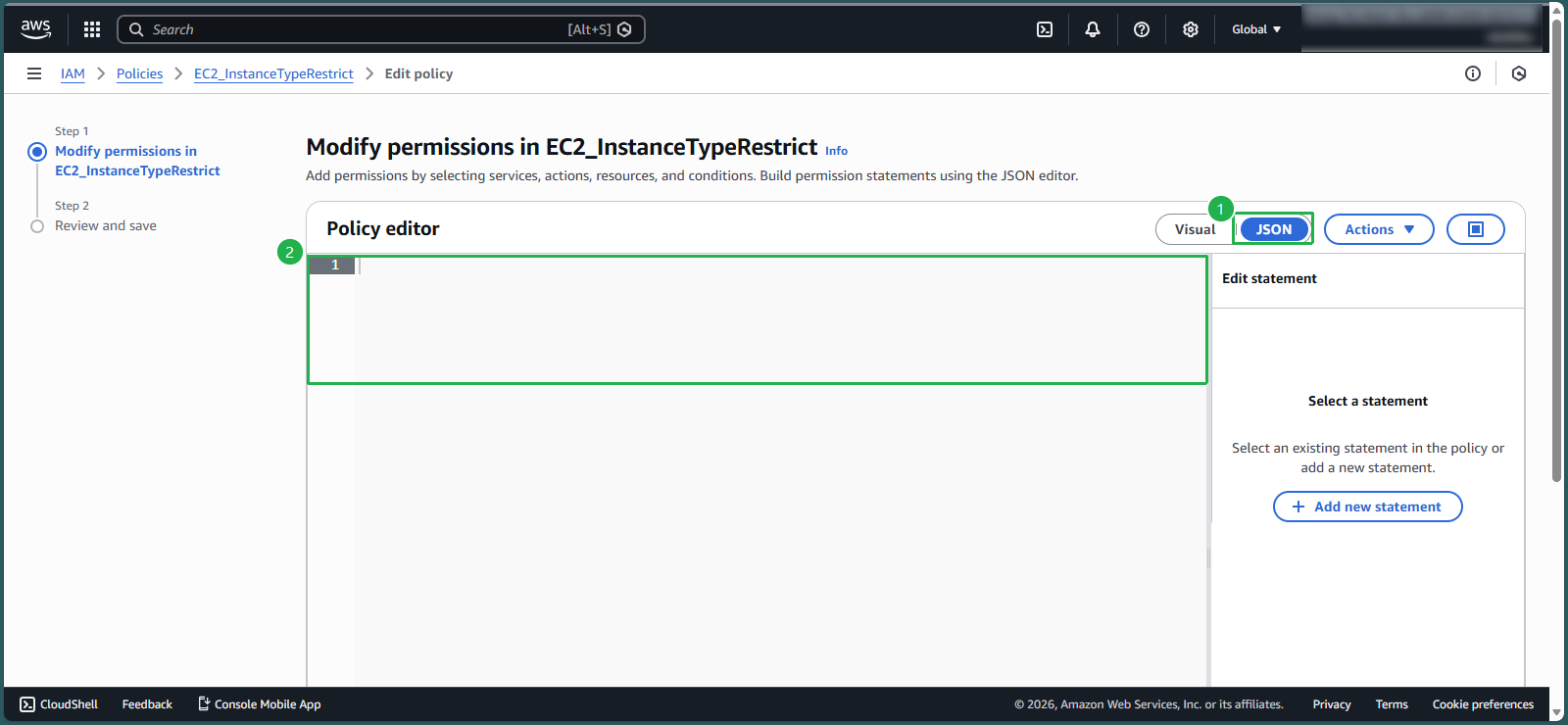

    • Scan the entire current code and press the Delete button

    create vpc for linux instance

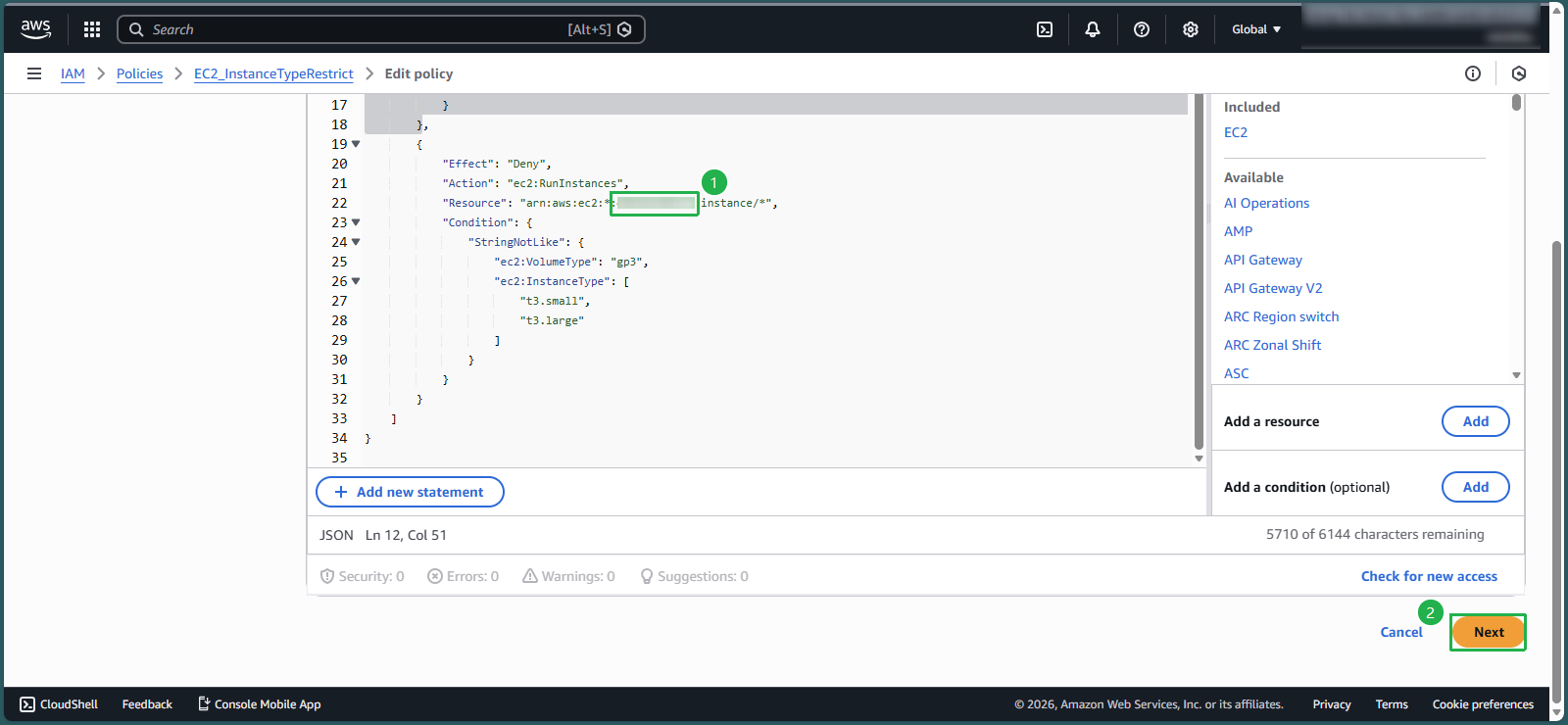

    • Copy the following code into the Policy editor box, scroll down and select Next
    • Meaning: User has the right to create EC2 with instance type: t3.small, t3.large with EBS volume gp3
    {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": "ec2:*",
            "Resource": "*"
        },
        {
            "Effect": "Deny",
            "Action": "ec2:RunInstances",
            "Resource": "arn:aws:ec2:*:148922931563:volume/*",
            "Condition": {
                "StringNotLike": {
                    "ec2:VolumeType": "gp3"
                }
            }
        },
        {
            "Effect": "Deny",
            "Action": "ec2:RunInstances",
            "Resource": "arn:aws:ec2:*:148922931563:instance/*",
            "Condition": {
                "StringNotLike": {
                    "ec2:VolumeType": "gp3",
                    "ec2:InstanceType": [
                        "t3.small",
                        "t3.large"
                    ]
                }
            }
        }
    ]
}

    create vpc for linux instance

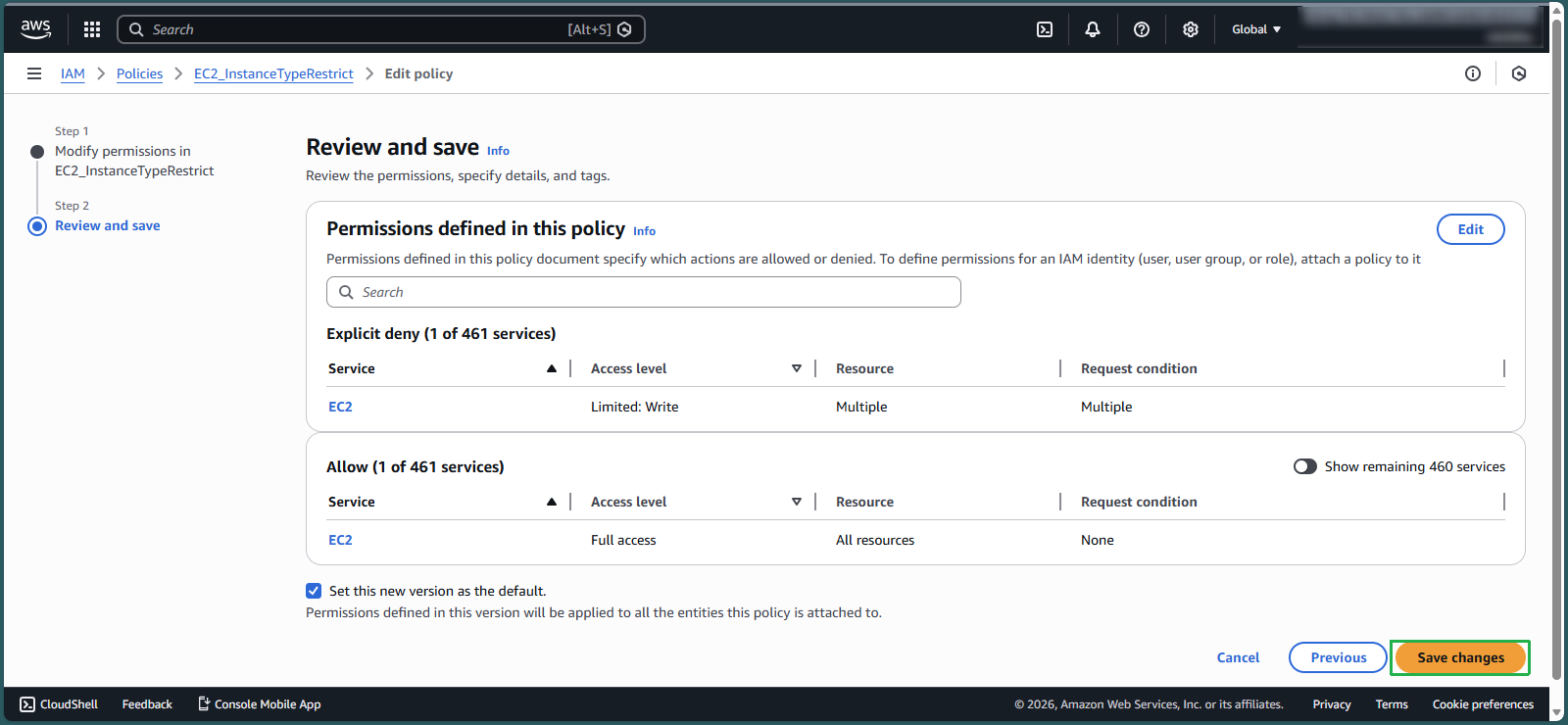

  • Select Save changes

    create vpc for linux instance

  1. Check Permissions policies for Instance Type: t3.small and EBS volume gp3

    • Log in to TestUser with the information you created in lab 8.1, step 4
    • Make sure you are in Region Singapore
    • In the search box 🔍, enter EC2

    create vpc for linux instance

    • At the EC2 interface, in the middle of the page, select Launch instance

    create vpc for linux instance

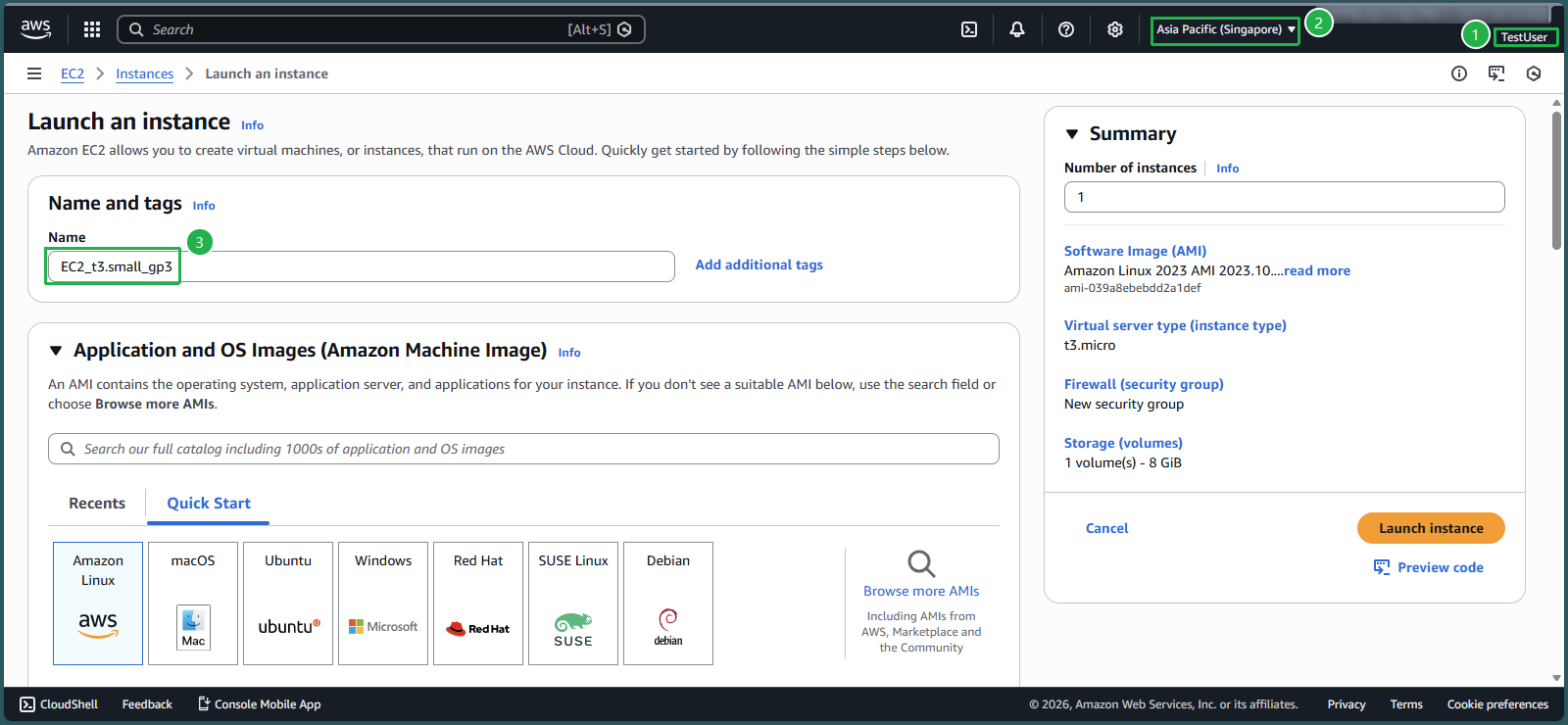

    • In the Name section, enter EC2_t3.small_gp3

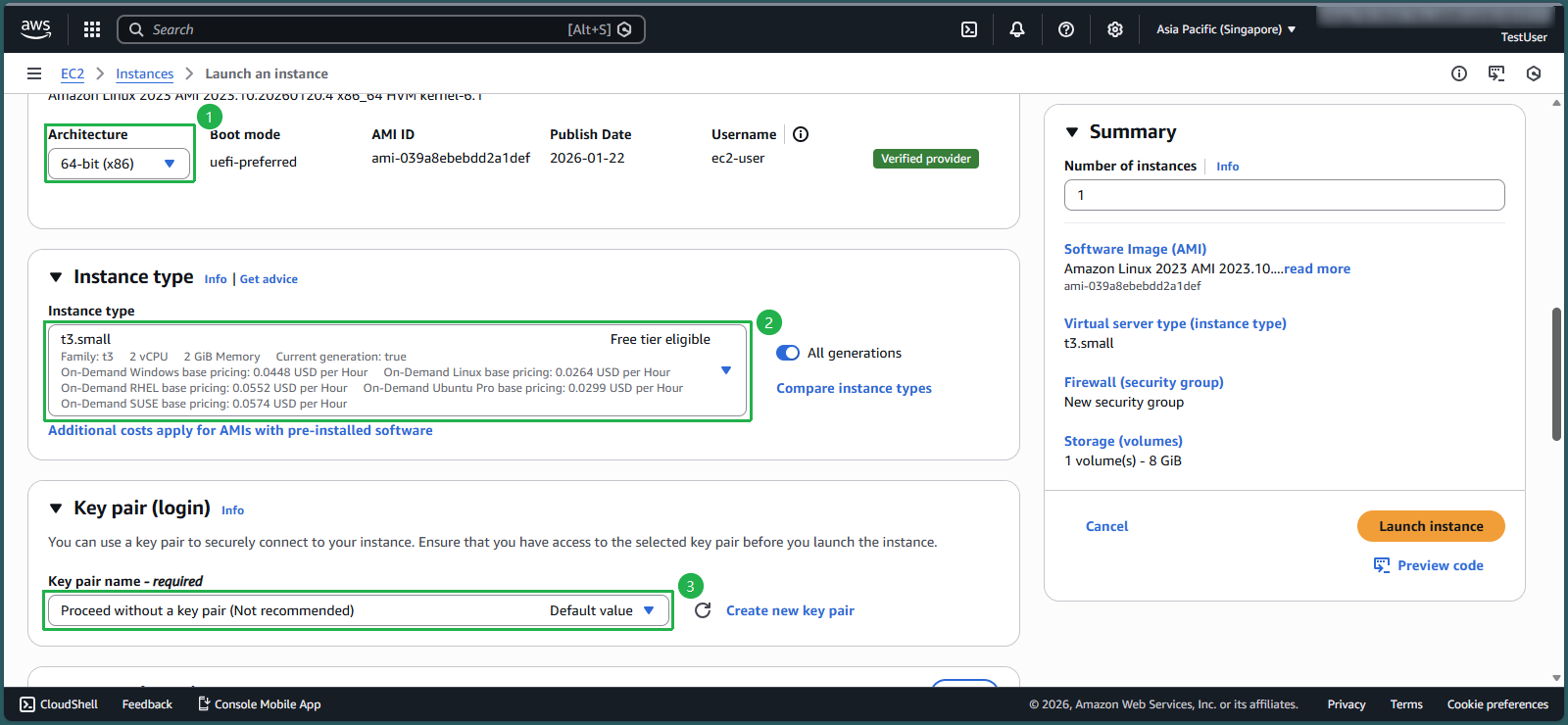

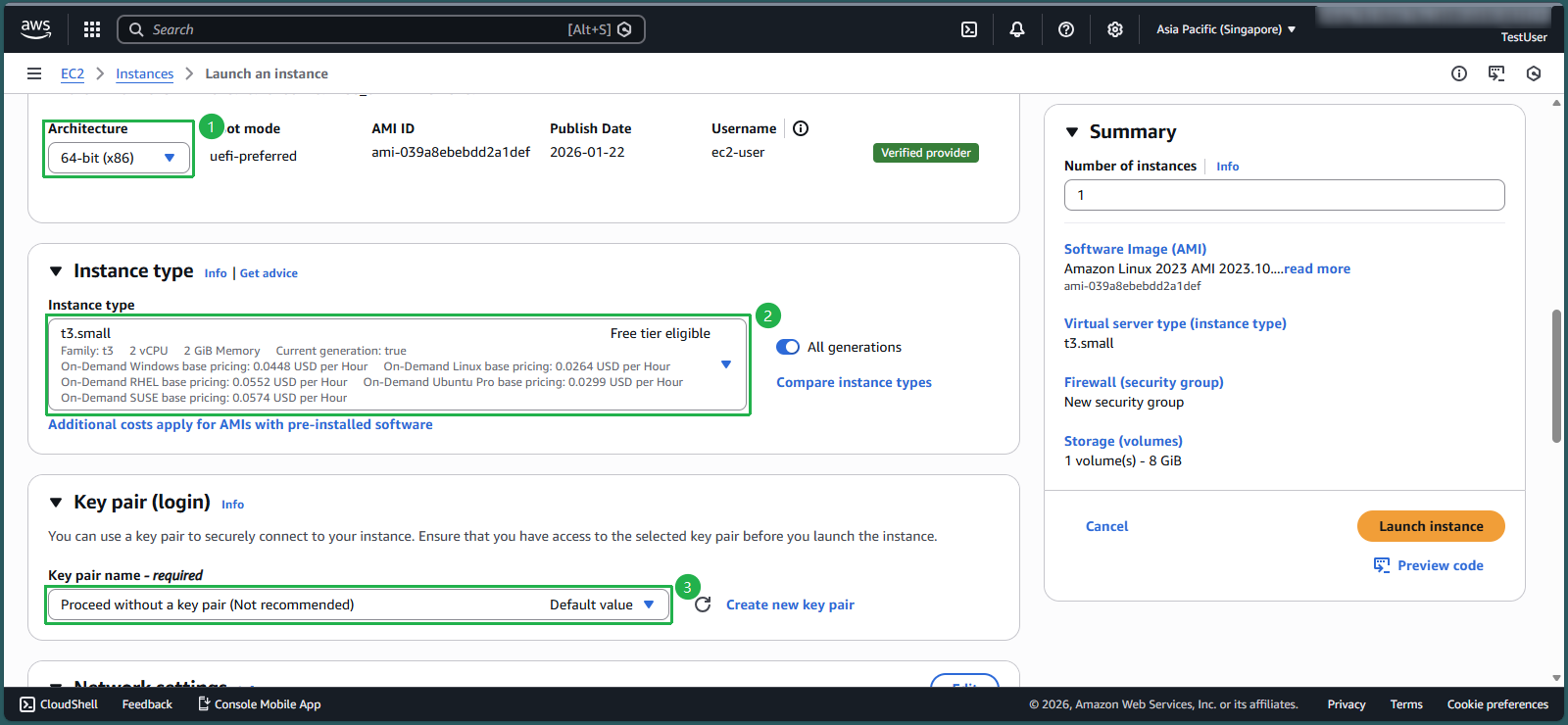

    • In the Architecture section, keep the value 64-bit (x86)

    create vpc for linux instance

    • In the Instance type section, select the triangle symbol, enter t3.small

    • In the key pair name section, select the triangle symbol, select Proceed without a key pair (Not recommended)

    create vpc for linux instance

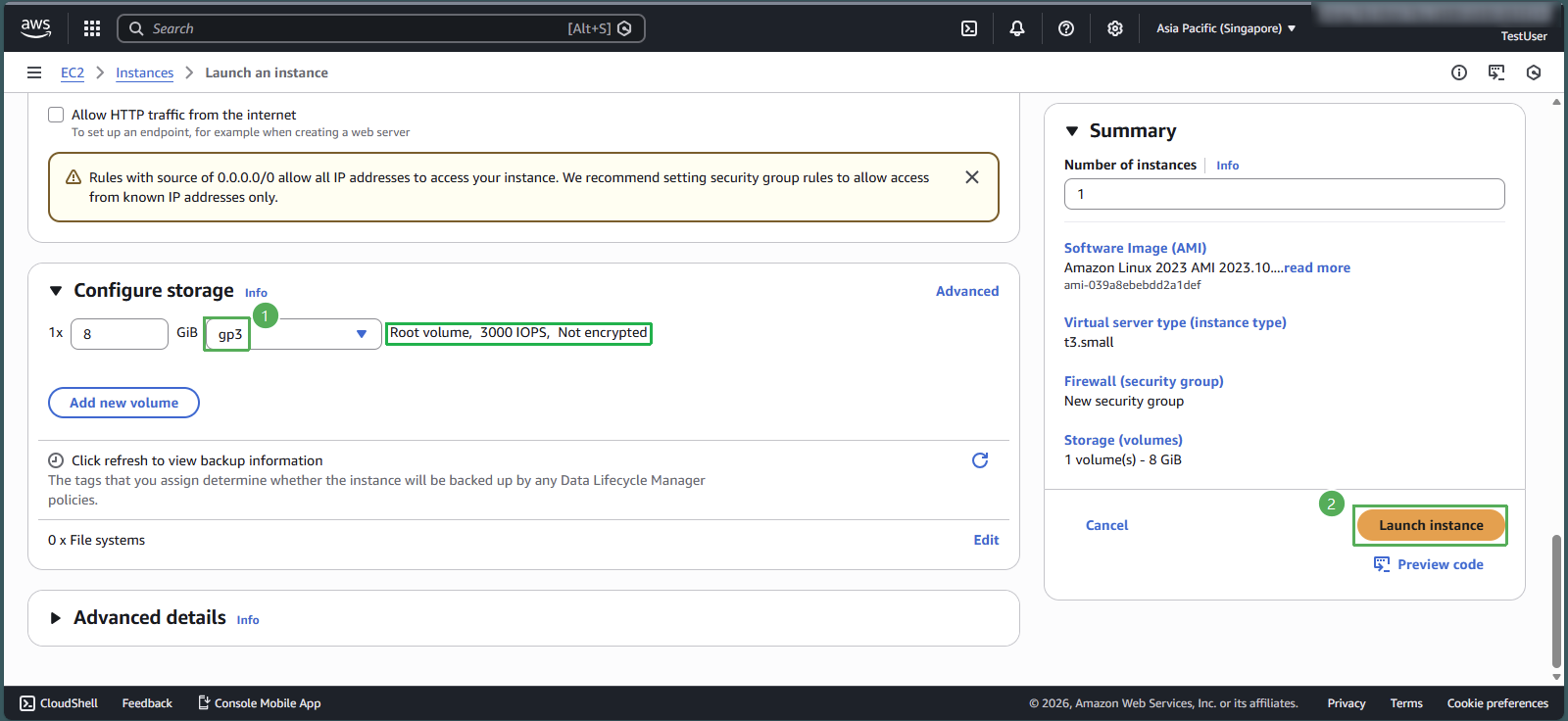

    • In the Configure storage section, select gp3
    • Select launch instance

    create vpc for linux instance

    • Noted: you can see the IOPS is 3000
      • where IOPS is a unit of measurement representing input/output operations per second

    create vpc for linux instance

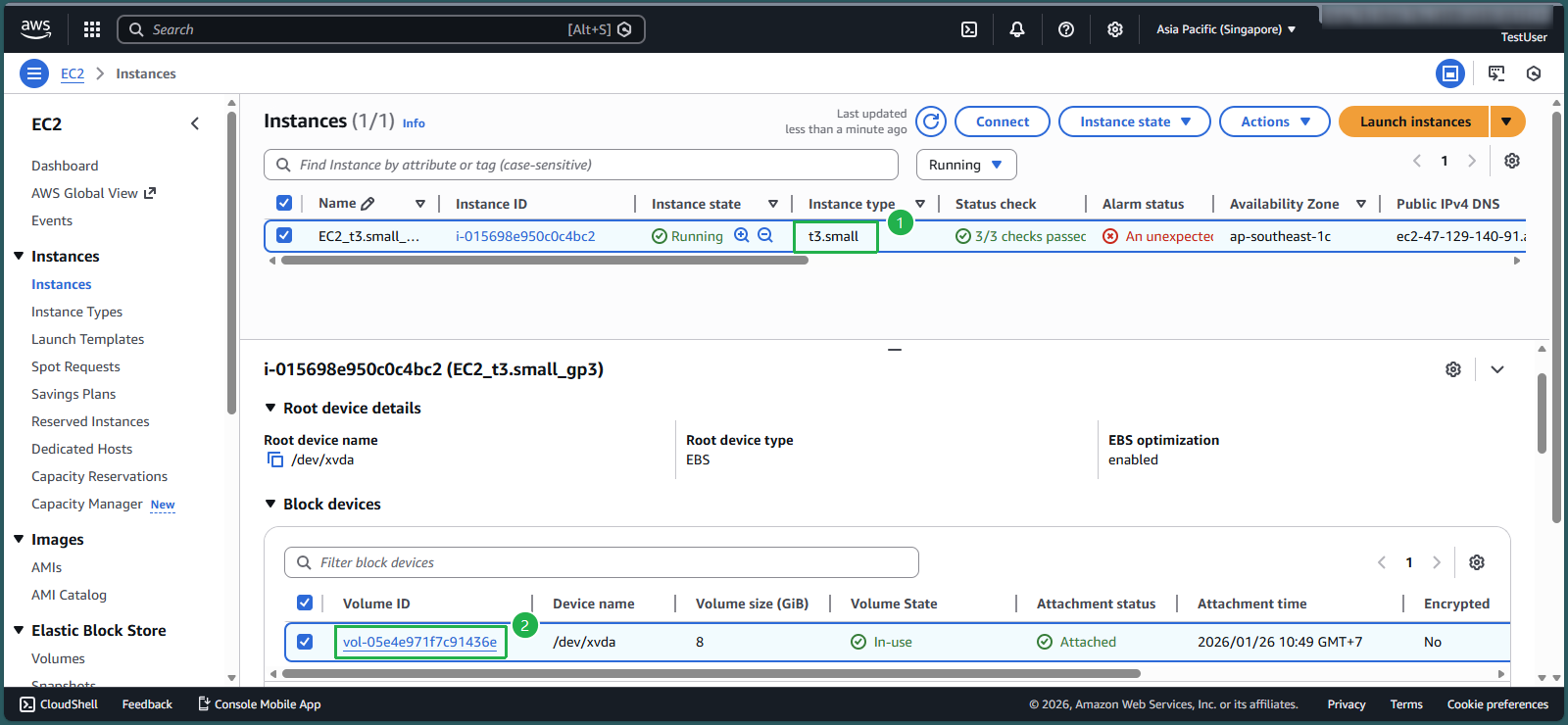

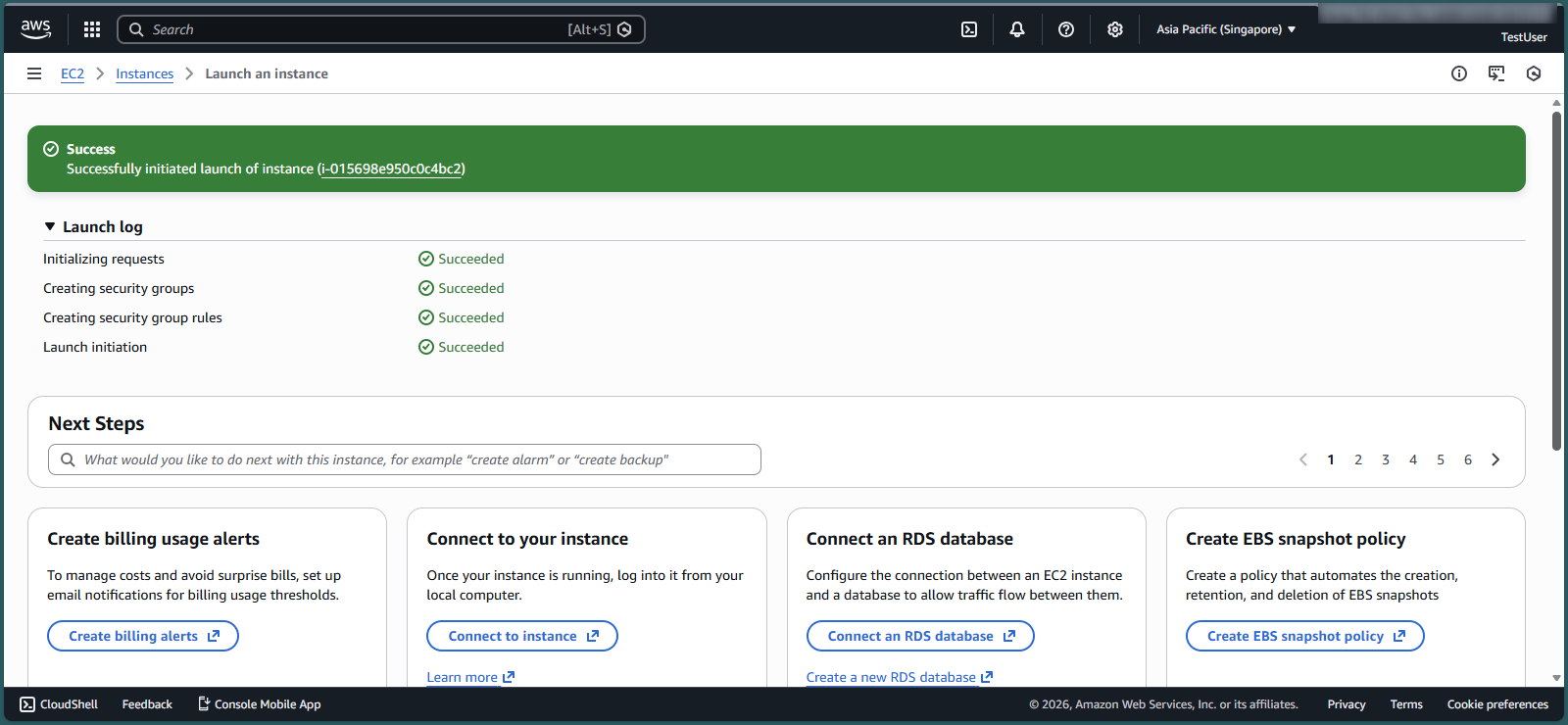

    • Select Instance ID that has just been successfully created

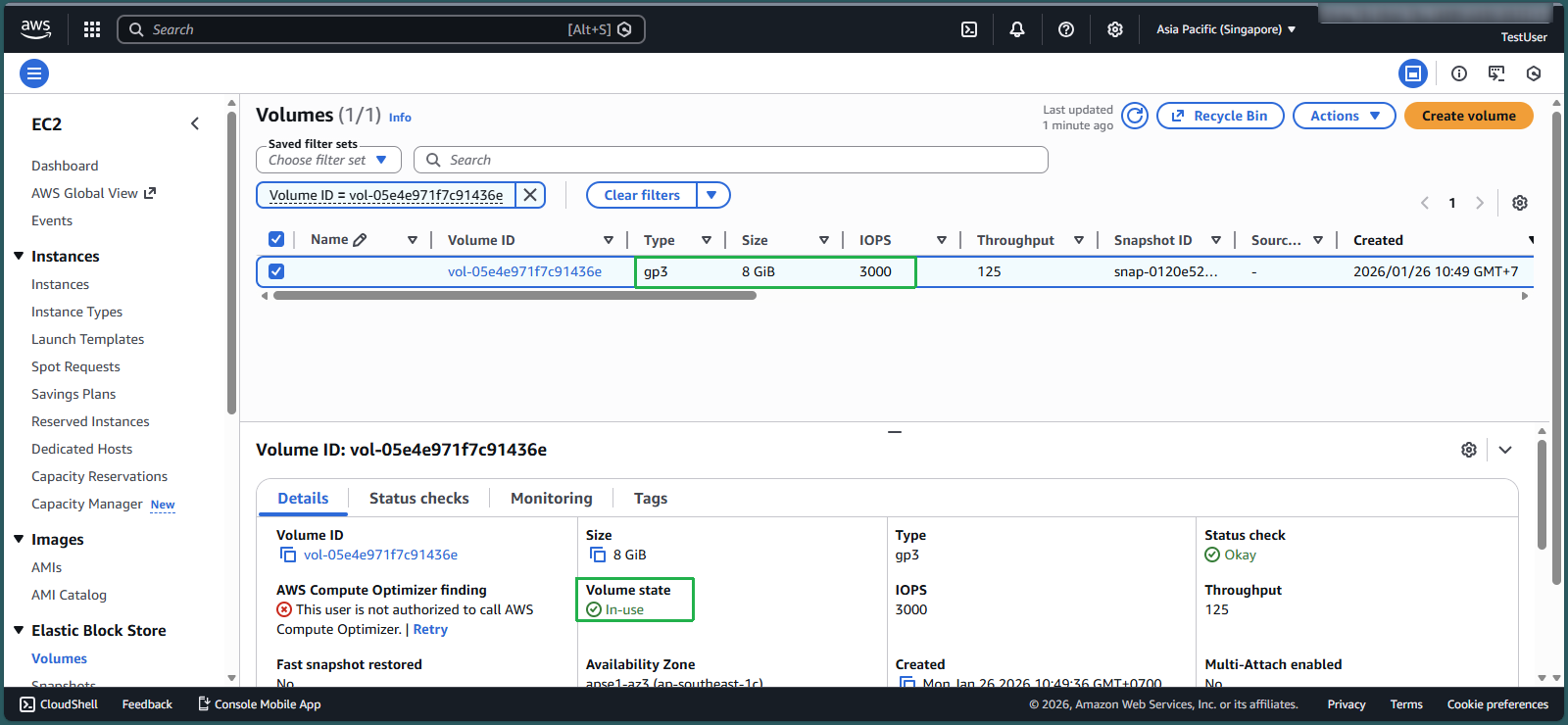

    create vpc for linux instanceSelect Storage, select volume ID

    create vpc for linux instance

    • Congratulations, you have successfully created EC2 with instance type t3.small and EBS volume: gp3

    create vpc for linux instance

    create vpc for linux instance

  2. Check Permissions policies for Instance Type: t3.small and EBS volume gp2

    • In the search box 🔍, enter EC2

    create vpc for linux instance

    • At the EC2 interface, in the middle of the page, select Launch instance

    create vpc for linux instance

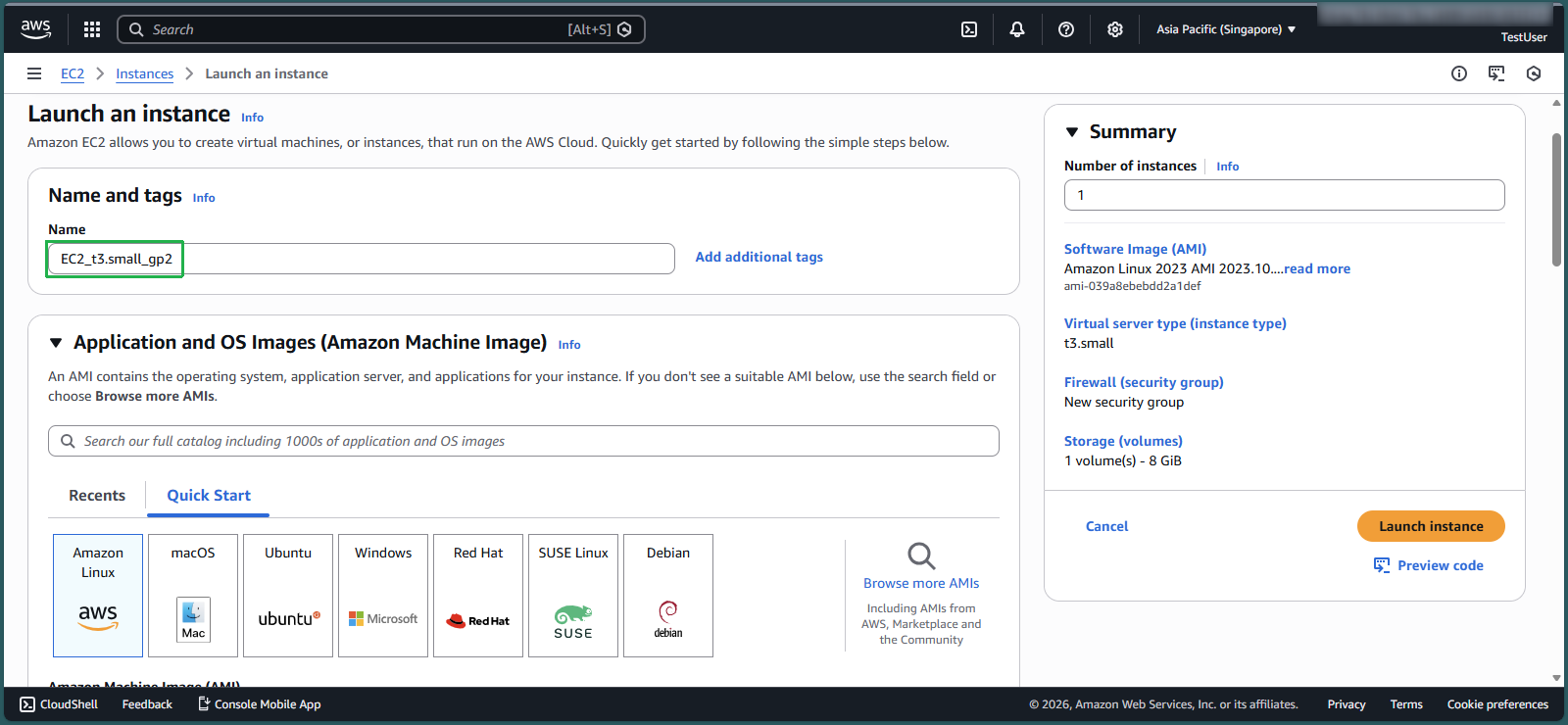

    • In the Name section, enter EC2_t3.small_gp2

    • In the Architecture section, keep the value 64-bit (x86)

    create vpc for linux instance

    • In the Instance type section, select the triangle symbol, enter t3.small

    • In the key pair name section, select the triangle symbol, select Proceed without a key pair (Not recommended)

    create vpc for linux instance

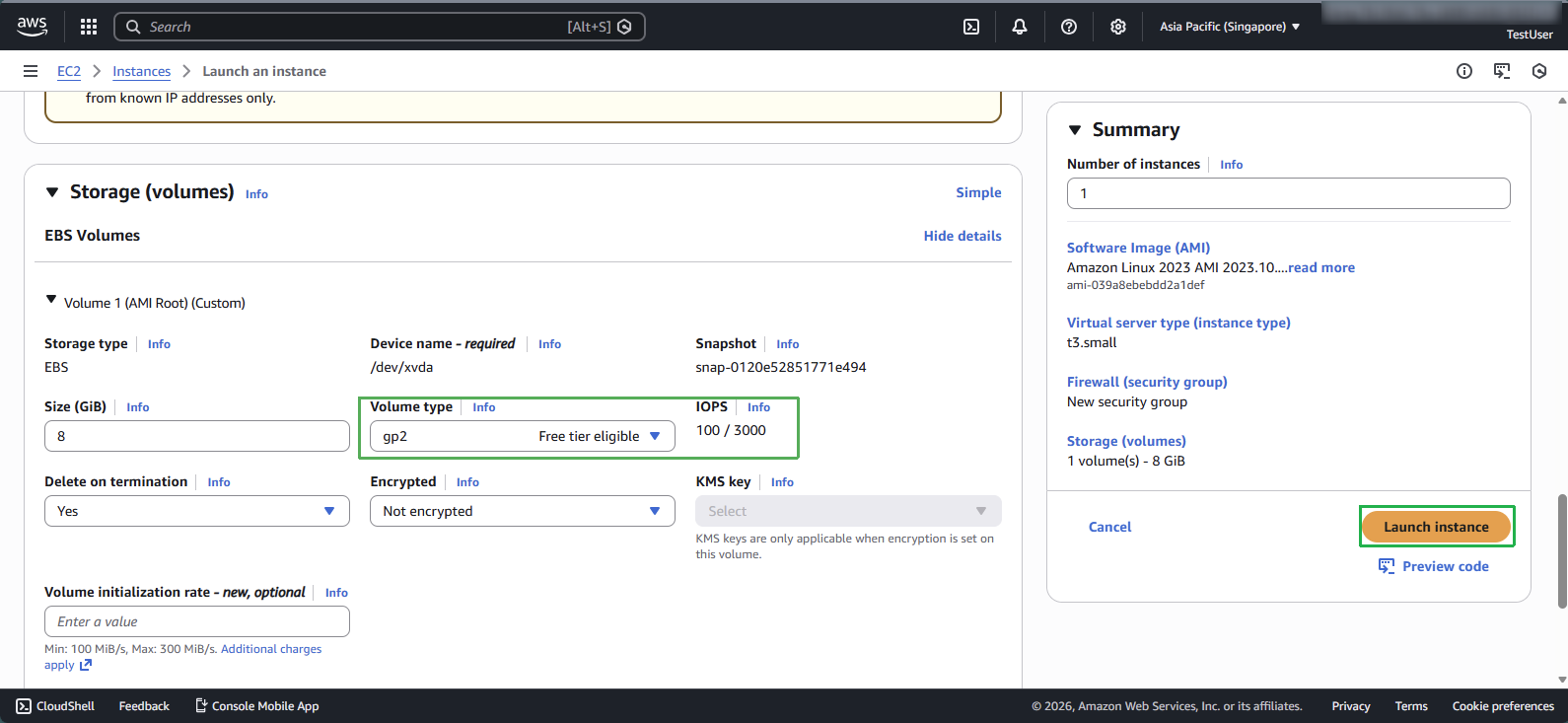

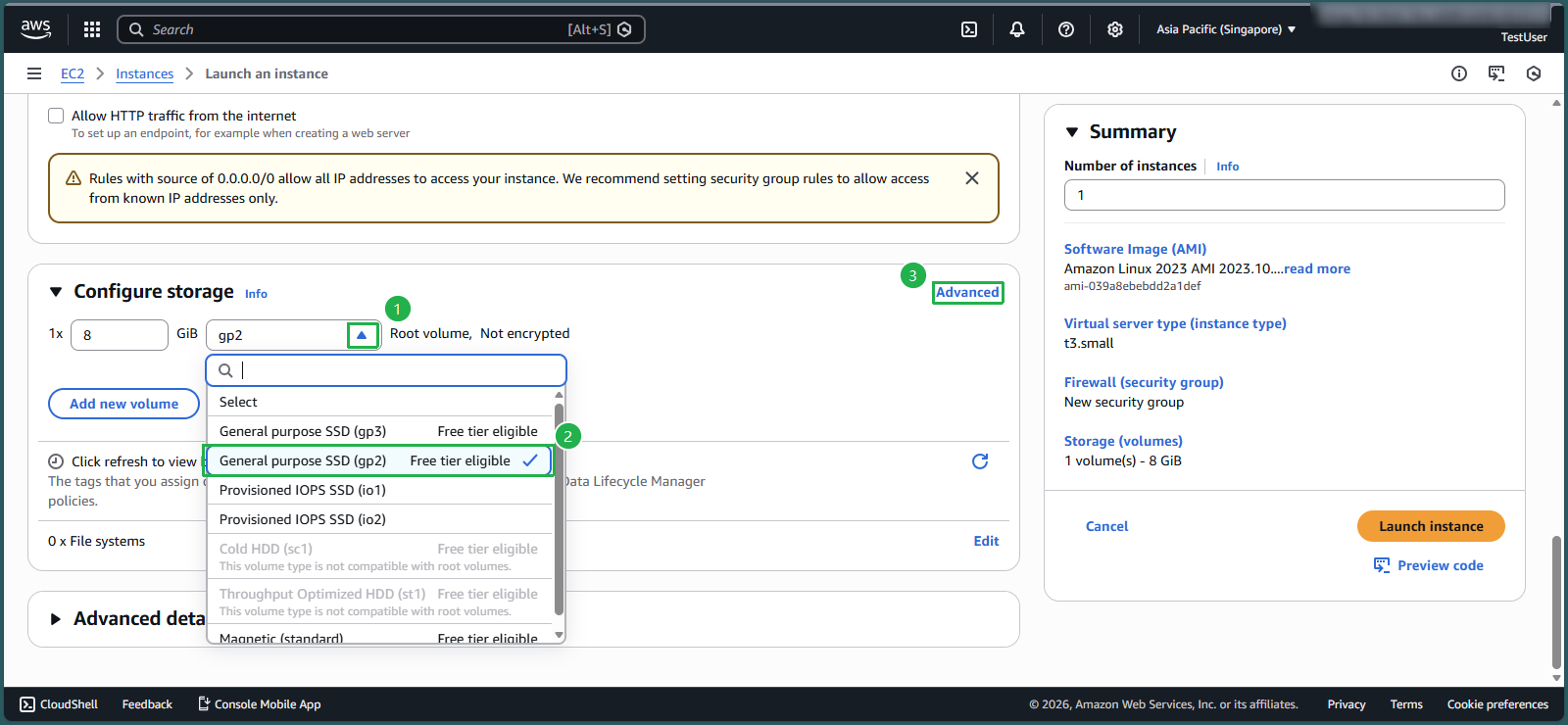

    • In the Configure storage section, select the triangle symbol, select gp2

    • Select launch instance

    • Noted: you can see the IOPS is 100/3000

      • which IOPS is a unit of measurement representing input/output operations per second

    create vpc for linux instance

    create vpc for linux instance

    • You received the response Instance launch failed - because you are not authorized. This satisfies the permission policy: EC2_InstanceTypeRestrict that you changed in step 1.

    create vpc for linux instance

  3. You can proceed to step 3 again, creating EC2 with instance type t3.small and EBS volume: io1, io2. To check the effectiveness of permission policy: EC2_InstanceTypeRestrict
